The Oculus - Off Grid Ridable Modern “Cabin"
- The Oculus is an off-grid structure that gets most of its heat from passive solar design. It gets additional heat from a solar hot water system tied to the radiant concrete floor. A solar electric system provides power for LED lights, sound, USB port and pumps. It has a wood stove as a back-up - in the unlikely event that we have a string of multiple cloudy days in the winter. Otherwise, the Oculus is operated entirely on renewable energy, without using combustion or fossil fuels!
- It is an example of sustainable construction, not just design. We brought in materials by bike and by hand, in order to be sensitive to the natural setting of the build site. Our goal was to be completely carbon neutral with the build! (we went through a Carbon Calculation and Life Cycle Analysis of the project to see how we performed)

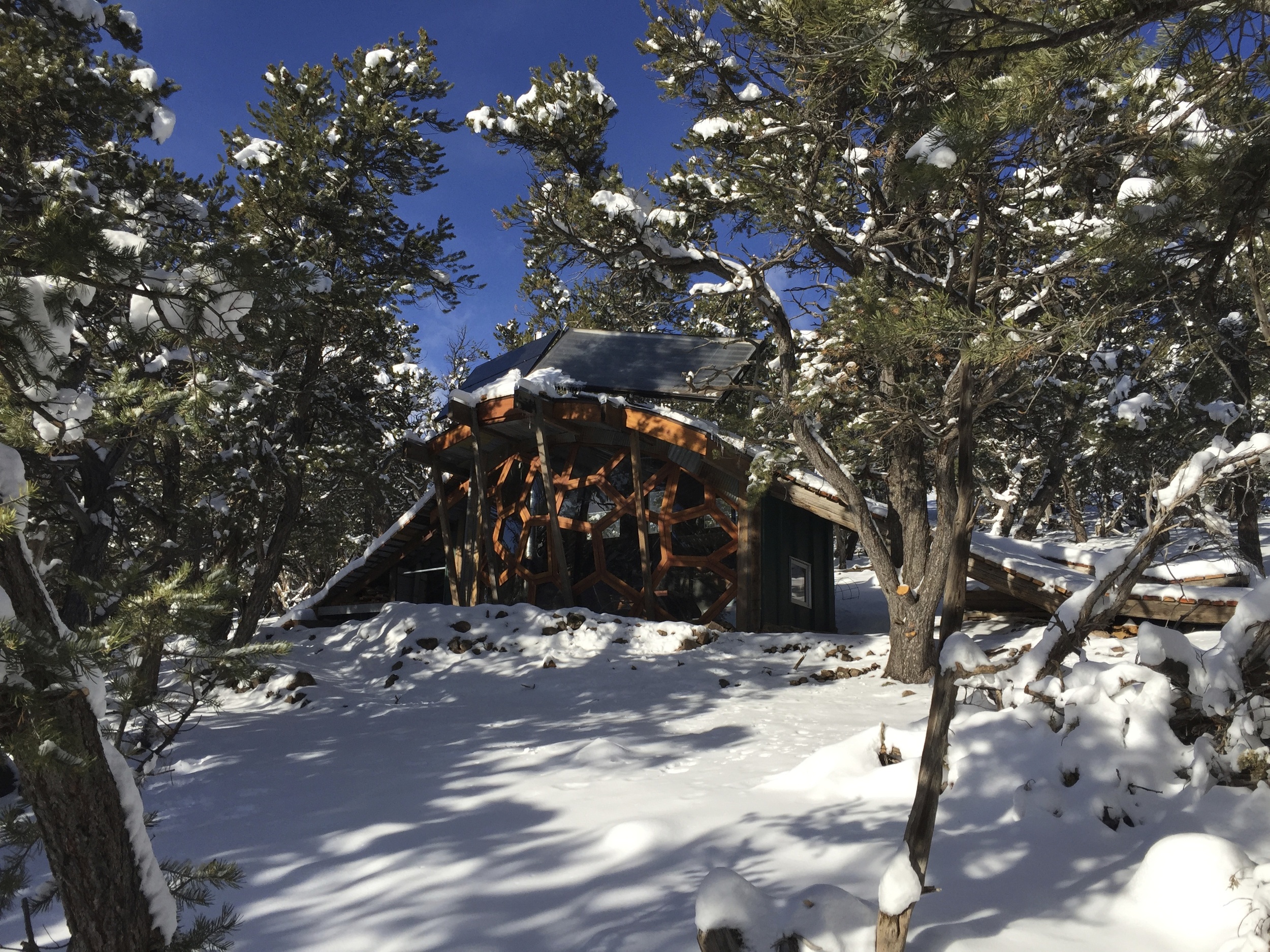

- It is an exercise in biomimicry. Oculus means "Eye," and our eye-shaped faceted window wall is designed to be an optimized passive solar design that takes in heat energy from the sun.
- It was built in a grassroots fashion, with mainly volunteer effort and very little money. Our local community really believes in this project, and effectively willed it to happen with their broad support!
- The Oculus was built with over 60% recycled materials! We had to purchase concrete and OSB sheathing panels, and some screws and joist hangers, but the majority of the materials were either salvaged, donated, recycled or reclaimed in some fashion.

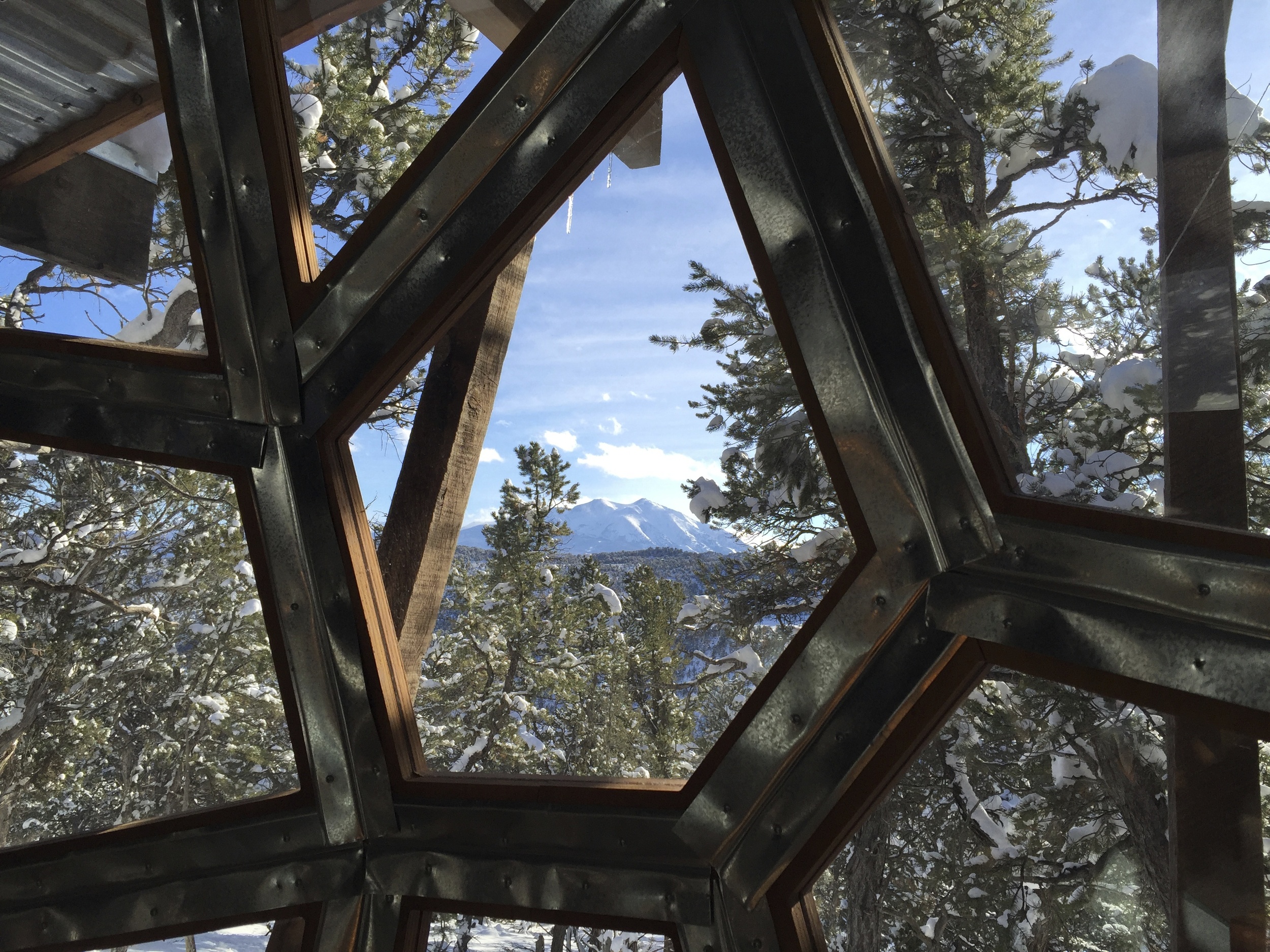

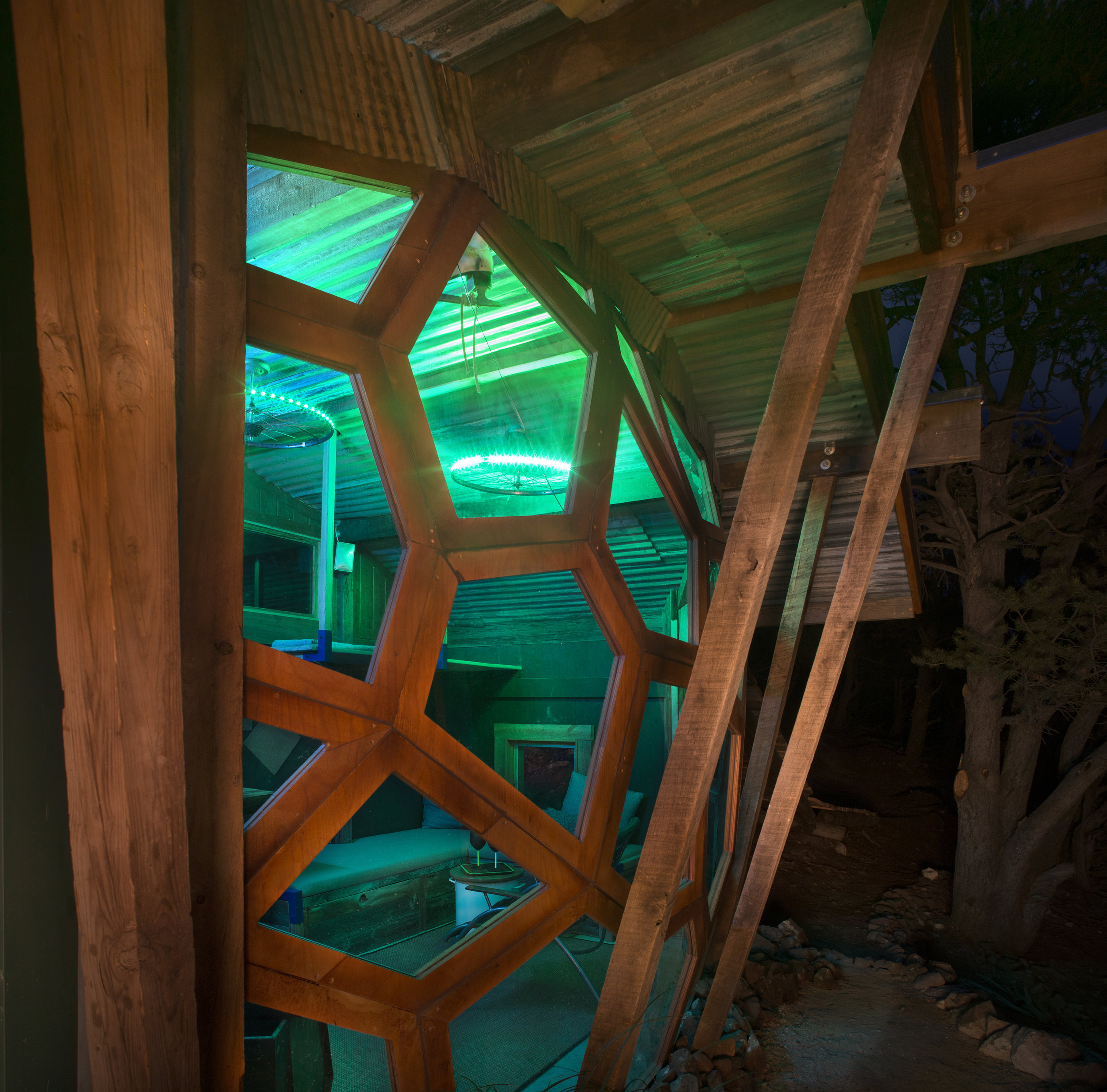

- The window wall, with its complex pattern of different shaped facets, was created through an integrated design process. It was tested and refined with CAD modeling and then sent to CNC machining for production. This type of sculptural architectural design is no longer solely reserved for large civic buildings. It is available to all of us now, for event the smallest of projects. Our intent was to make small, modular window frames at a reasonable size and weight to be carried on a bike. But as things go, we didn't get to try carrying the individual frames in on our bikes since the entire window packed was wheeled in on a pallet. (we were pressed for time) We set it on the back of a cargo bike with four guys holding the load steady and I rode the bike down the singletrack to the Oculus!
- The Oculus allows us to test and refine the design and capacity of our cargo bikes. They performed admirably for the build, but we see improvements that can be made to these bikes so that we can bring materials in delicately to a remote site on singletrack mountain bike trails.

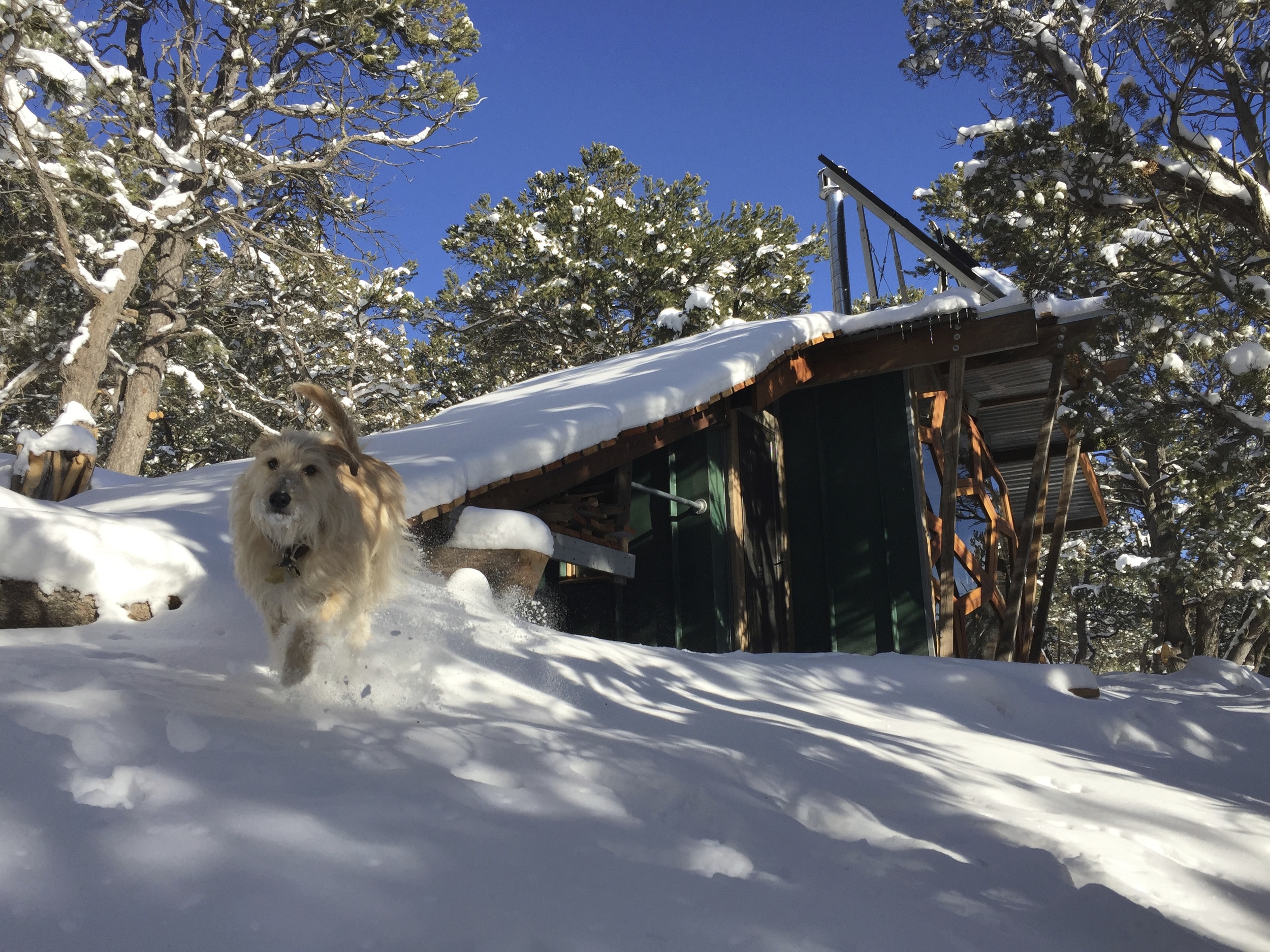

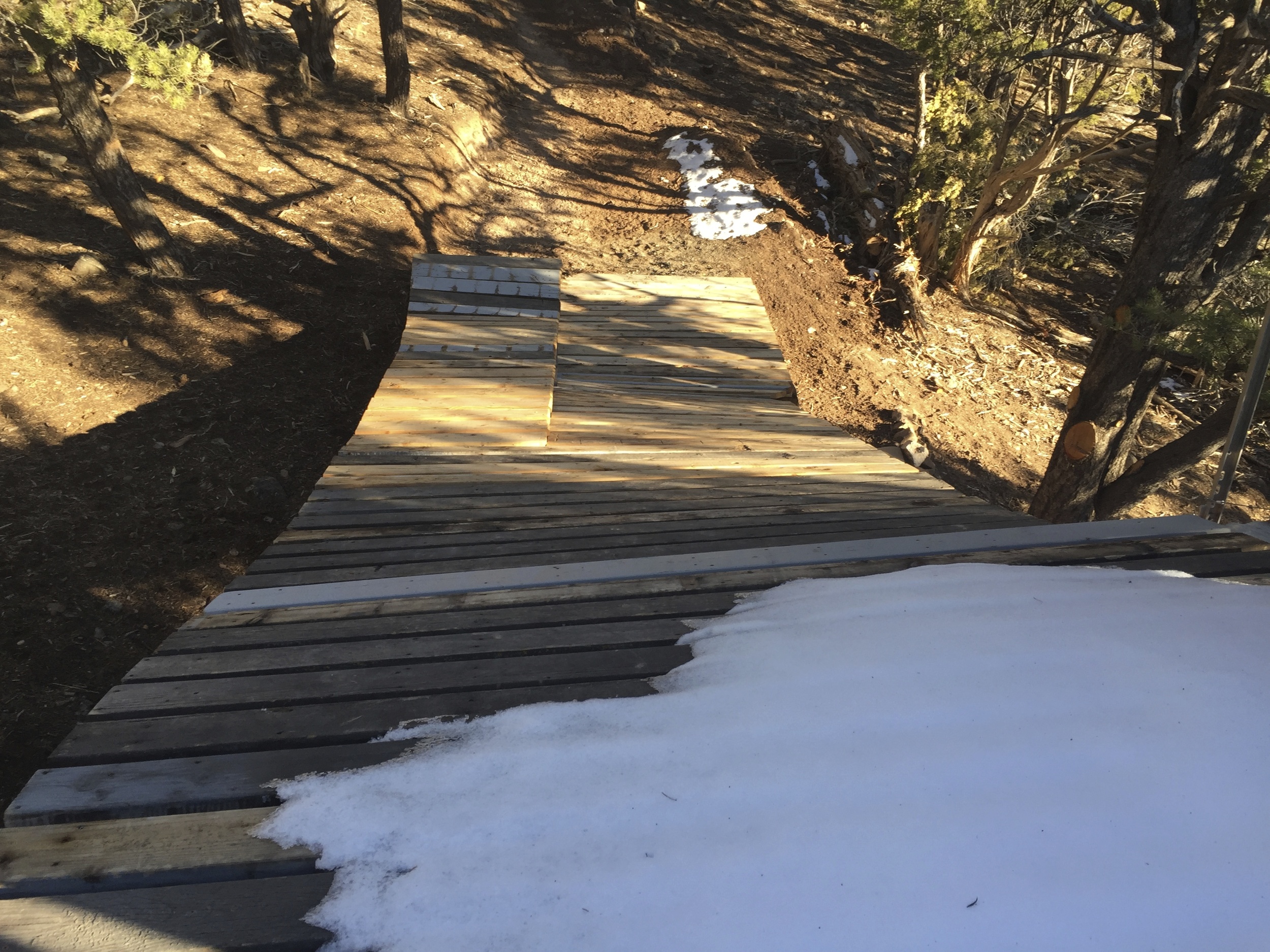

- It is a great example of how to get more out of our roof forms. The roof is not just a roof, it is a ridable part of the trail system. All buildings should be ridable. Think about it. Buildings are becoming more curvilinear and anthropomorphic. We, as humans, crave biophyllic design. Look at today's modern architecture and you'll see sweeping roof lines that are just begging to ridden! In tight urban environments, ridable or walkable roof lines will connect people and places more efficiently, and it will be a lot more fun to get around! (if you go really fast, you can launch over the entire habitable portion of the structure, à la Max Cooper!)
- The project was done as a team exercise. Eight friends agreed to come together as the core build team. Everyone chipped in on evenings and weekends to get it done.
- We all got to know each other a little bit better, and managed to navigate some tricky issues along the way.
- We weren't doing this for a client, we did it for ourselves. Each one of us was a client, an architect, an engineer, a builder, a laborer...
- We made quick decisions on the fly and we were able to get the entire project completed in just 10 weeks.
- When you watch the show, surf our web site, or study our design, you may gain some insight into the outdoor lifestyle of the Stomparillaz. We are a community-based club of bike enthusiasts who ride and paint pictures and design and build - and generally do important-looking things where art and bikes come together.
- Each team member has a specific skill:
Steve Novy - Architect, Chief Herder of StompaCats
Aaron Humphrey - Property Owner, Lighting Designer
David Rasmussen - Master Craftsman, CNC Machining Wizard

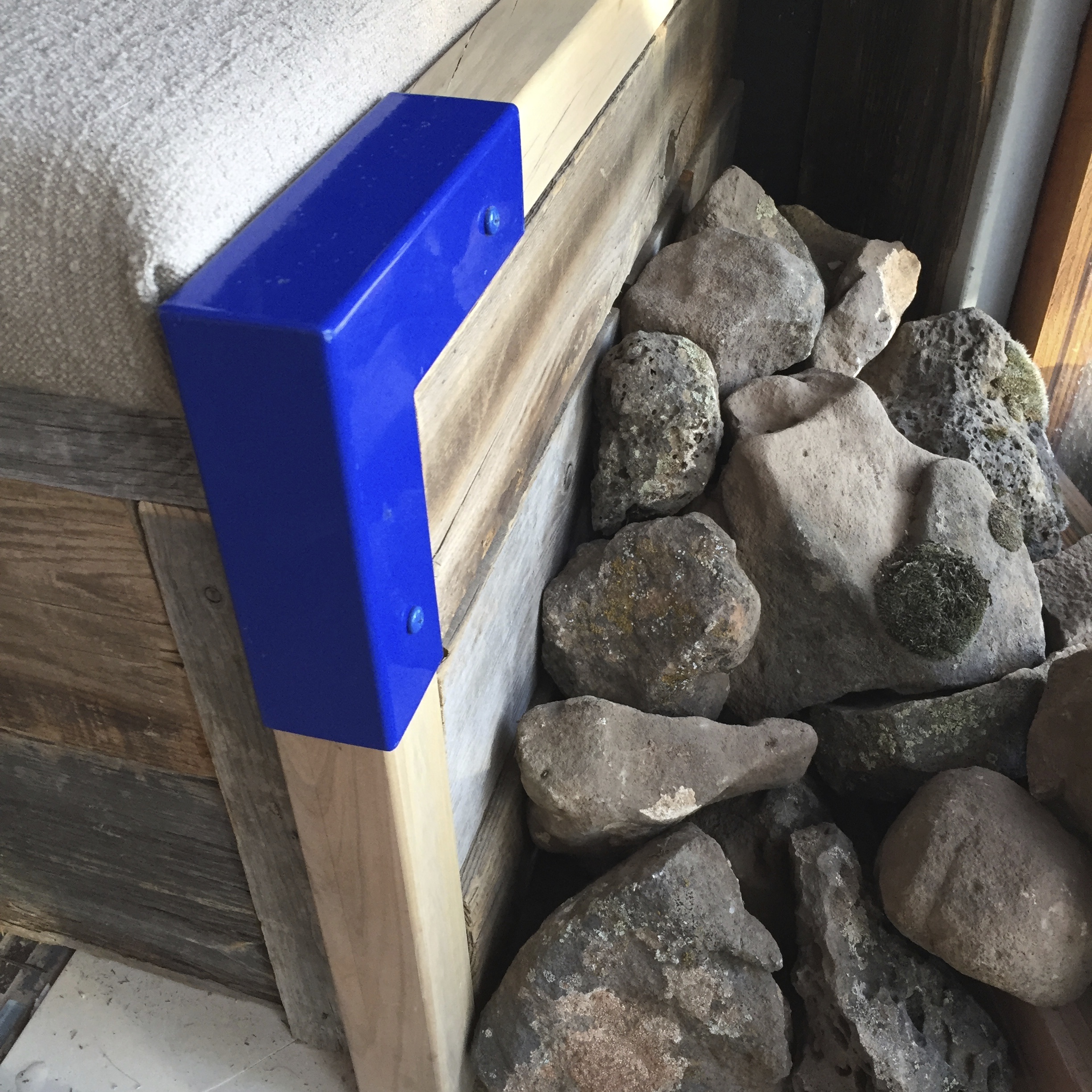

Brad Reed Nelson - Master Woodworker, Creator of the Built-in Bench and Bunk, Loose Cannon
Daniel Giese - Logistical Expert, Strong Man, Artist, Salt of the Earth
Darin Binion - Bike Designer / Mechanic, Bikepolo Master
Max Cooper - Stomparillaz Founder, Artist, Cycling Advocate
Rob Hollis - Architectural Intern, Rock Hauler
The Oculus is featured in DIY Network's one-hour special: Building Off the Grid - Rocky Mountains
Watch here: https://youtu.be/kSaOW7HCBc0 (we get NONE of the $1.99 you have to pay to watch the show...)
- We will now use the knowledge we have gained from this first iteration of the Oculus Concept to start planning for Oculus 2.0.
- You've got to ride this thing. Its a blast! (you are invited...)
Steven A. Novy, AIA
